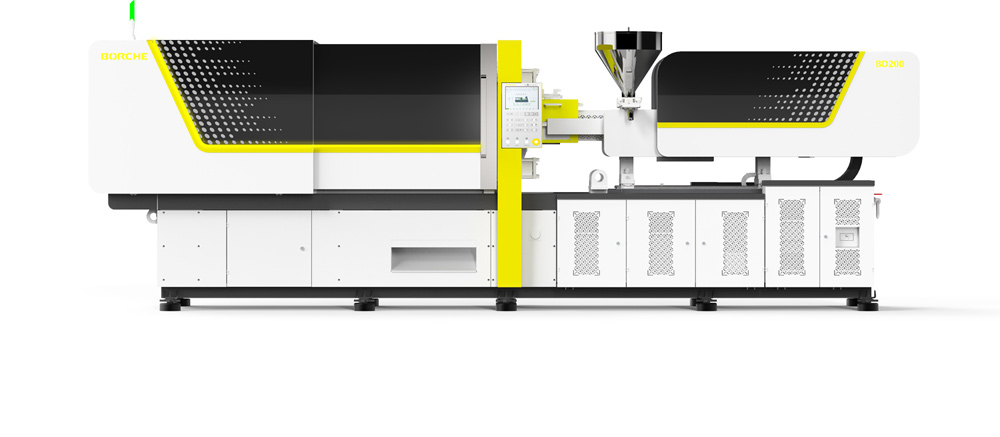

BD Electric Series

Advanced Technique

● An adjustable injection unit
● A design of direct drive servo motor system to injection unit
● A new type of electric direct drive injection motor device
● A design of motor direct drive structure for mold clamping unit A structure of charging system with electric drive system
● Cross head zero position calibration mechanism and method for mold open and close

• Fast - Double efficiency
• Accuracy - Quality Guarantee
• Intelligent connection
• Energy Saving

Fast – Double Efficiency

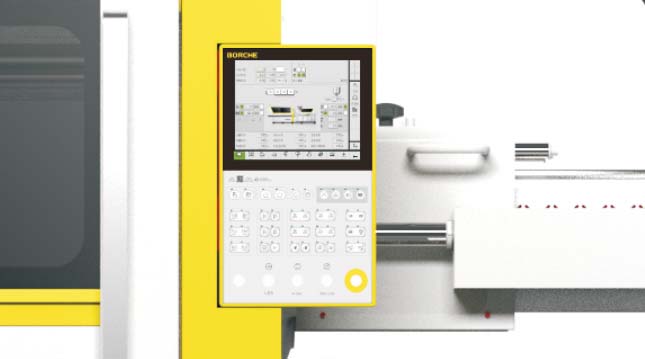

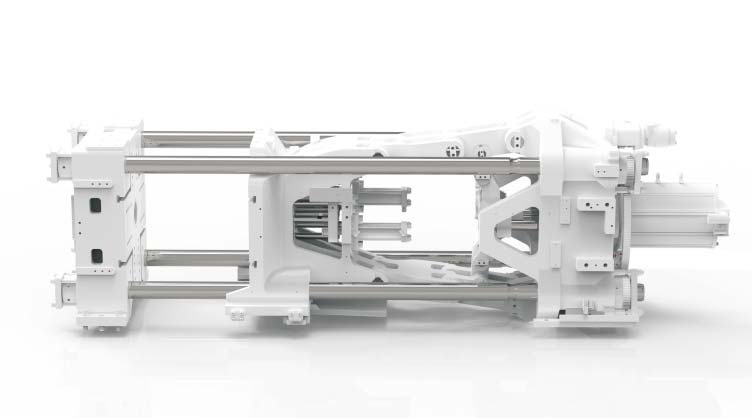

Quick response: injection response time less than 50ms	Fast mold open & close: 500mm/s

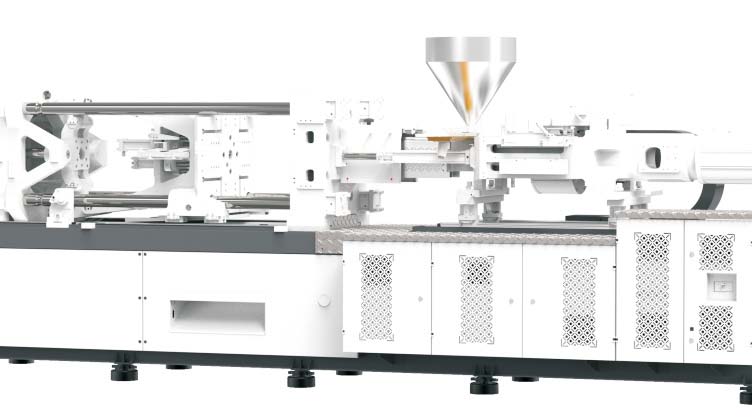

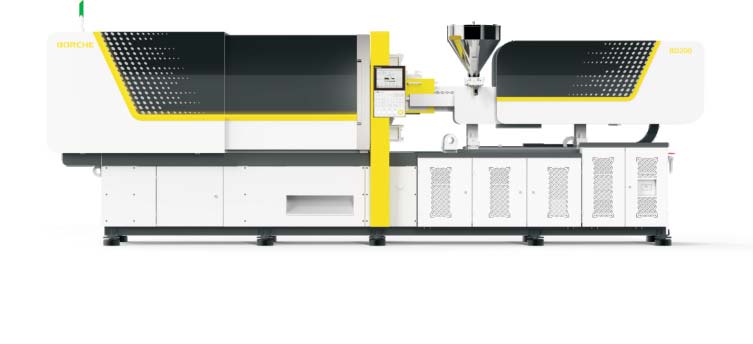

Overlapped movement: production time shortened by 30%	Fast cycle time: dry cycle decreased by 20%

• *The above parameters are obtained via internal test for reference only.

Accuracy – Quality Guarantee

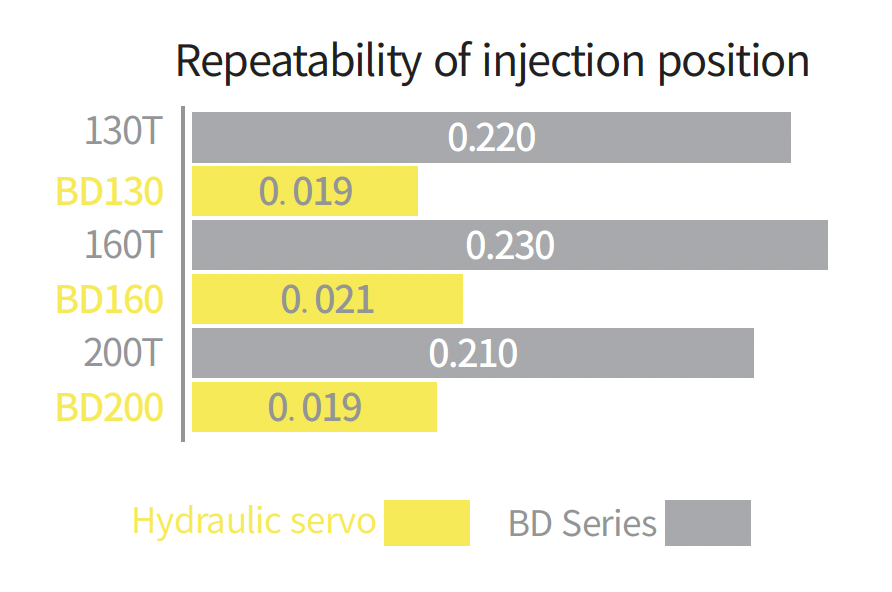

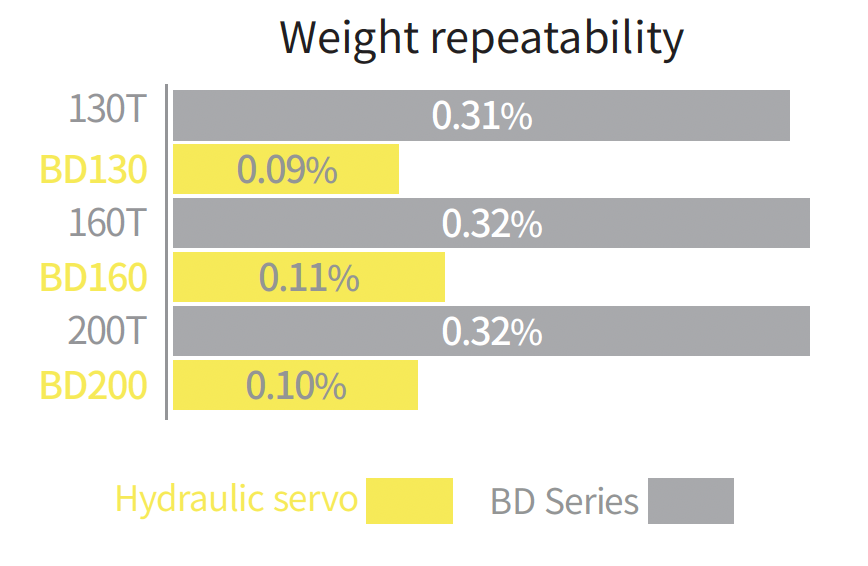

Repeatability precision of product weight increased by 3 times	Repeatability precision of injection position increased by 10 times

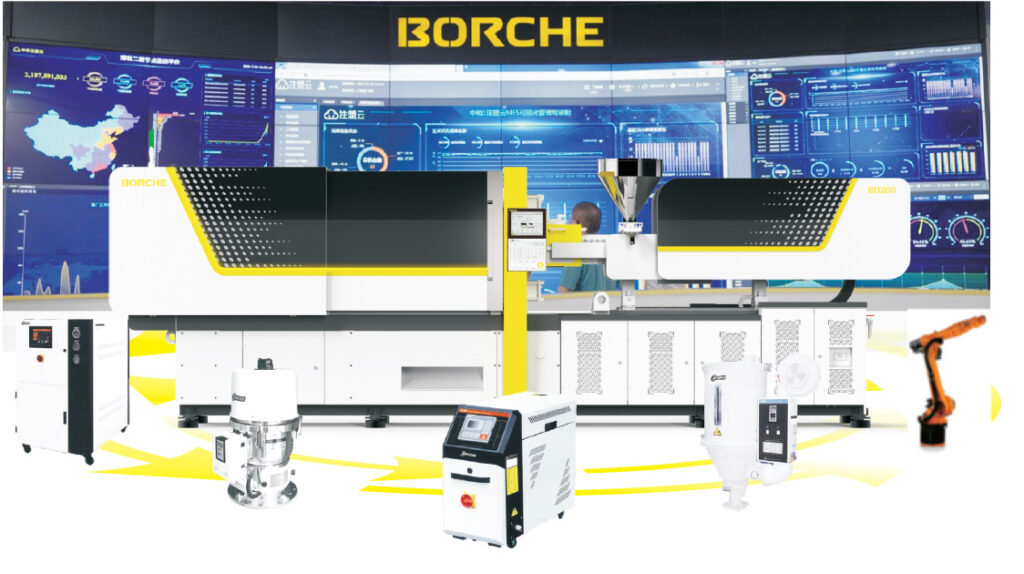

Intelligent connection

BD series machine can interconnect with injection moulding machine and the peripherals via Plascloud, complete two-way data communication, and realise the information and digital management of injection moulding plants.

Energy Saving

● Low water consumption
● Raw material saving: low product defects
● Low oil consumption, 80% less than hydraulic machine
